The Art of Powder Coating

What is Powder Coating?

Powder coating is a modern and efficient method of finishing and protecting metal surfaces, providing an attractive, durable, and long-lasting finish for a wide range of applications. Unlike traditional liquid paints, powder coating involves applying a dry powder that is then cured under heat to create a tough, seamless coating. This process has become popular in industries like automotive, architecture, appliances, and even consumer products, offering both aesthetic benefits and excellent performance.

The Basics of Powder Coating

Powder coating is a dry finishing process where a powdered pigment and resin mixture is electrostatically applied to a metal surface and then cured using heat. The process consists of several key steps: preparation, application, curing, and cooling.

1. Preparation: The metal surface must first be cleaned and pretreated to ensure the coating adheres properly. This step often involves cleaning the metal to remove any oils, dirt, rust, or previous finishes. Pretreatment can include processes such as sandblasting, chemical cleaning, or phosphating, all of which help improve the adhesion of the powder coating.

2. Application: The powder is applied to the surface using a spray gun that charges the powder particles with an electrostatic charge. The metal surface is grounded, and the oppositely charged particles are attracted to it. This process ensures that the powder sticks to the surface in an even layer. The spray gun uses a compressed air system to propel the powder onto the surface. The thickness of the powder coating can be adjusted by controlling the amount of powder applied.

3. Curing: Once the powder is applied, the object is placed in an oven where it is heated to temperatures typically between 180-200°C (350-400°F). During this curing process, the heat melts the powder, allowing it to flow and form a uniform, hardened coating. The curing process typically lasts 10-20 minutes, depending on the size and thickness of the coated object. This heat-driven process causes the powder to chemically bond to the metal surface, creating a strong, durable finish.

4. Cooling: After curing, the coated object is removed from the oven and allowed to cool. As it cools, the coating hardens completely, resulting in a tough, resilient finish.

Types of Powder Coating

There are several different types of powder coatings available, each suited for different applications and environments. The two primary types are:

1. Thermoset Powder Coating: Thermoset powder coatings are the most commonly used type. They undergo a chemical reaction during curing that results in a permanent, cross-linked structure. Once cured, the coating cannot be remelted or reshaped, making it ideal for high-performance applications where durability and heat resistance are essential. Thermoset coatings are often used for items such as automotive parts, outdoor furniture, and appliances.

2. Thermoplastic Powder Coating: Unlike thermoset coatings, thermoplastic powders do not undergo a chemical change during curing. Instead, they melt and fuse together, forming a continuous layer. After cooling, the coating retains the ability to soften and remelt if reheated, making it suitable for applications where parts may need to be reshaped or repaired. Thermoplastic powder coatings are often used in applications that require flexibility or the ability to withstand repeated thermal cycling, such as electrical components or equipment exposed to high temperatures.

Advantages of Powder Coating

Powder coating offers numerous benefits over traditional liquid paint finishes. Some of the main advantages include:

1. Durability: Powder coating provides a tough, resistant finish that is more durable than traditional paint. It is highly resistant to chipping, scratching, fading, and wear, making it ideal for high-use applications. The coating’s resistance to corrosion and weathering also helps extend the life of metal parts exposed to the elements, such as outdoor furniture, automotive parts, and architectural features.

2. Environmentally Friendly: One of the standout advantages of powder coating is its environmentally friendly nature. Unlike liquid paint, which often contains volatile organic compounds (VOCs), powder coating does not release harmful chemicals into the atmosphere. Additionally, there is minimal waste during the process, as any excess powder can be collected and reused, reducing material waste.

3. Variety of Finishes and Colors: Powder coating is available in a vast range of colors, textures, and finishes, offering exceptional flexibility in design. From glossy and matte finishes to textured, metallic, and even special effects finishes, powder coating can be customized to achieve the desired aesthetic for various applications. This versatility makes it an ideal choice for both functional and decorative purposes.

4. Improved Thickness Control: Because powder coating is applied electrostatically and can be baked at high temperatures, it often results in a thicker and more even coating than traditional liquid paint. The controlled application allows for consistent coverage across the surface, with no brush marks or drips.

5. Cost-Effectiveness: Although the initial setup for powder coating may be more expensive than liquid paint, it is generally more cost-effective in the long term. Powder coating systems can be more efficient, with minimal waste and the ability to reuse excess powder. Additionally, the durability of powder coatings reduces the need for frequent reapplication or touch-ups, saving money on maintenance.

6. Better Adhesion and Coverage: The electrostatic application process ensures that the powder adheres evenly to metal surfaces, even in hard-to-reach areas. This creates a smooth and uniform coating, which is less prone to defects like runs or sags.

Applications of Powder Coating

Powder coating is used in a wide range of industries and applications, thanks to its durability and aesthetic appeal. Some of the most common uses of powder coating include:

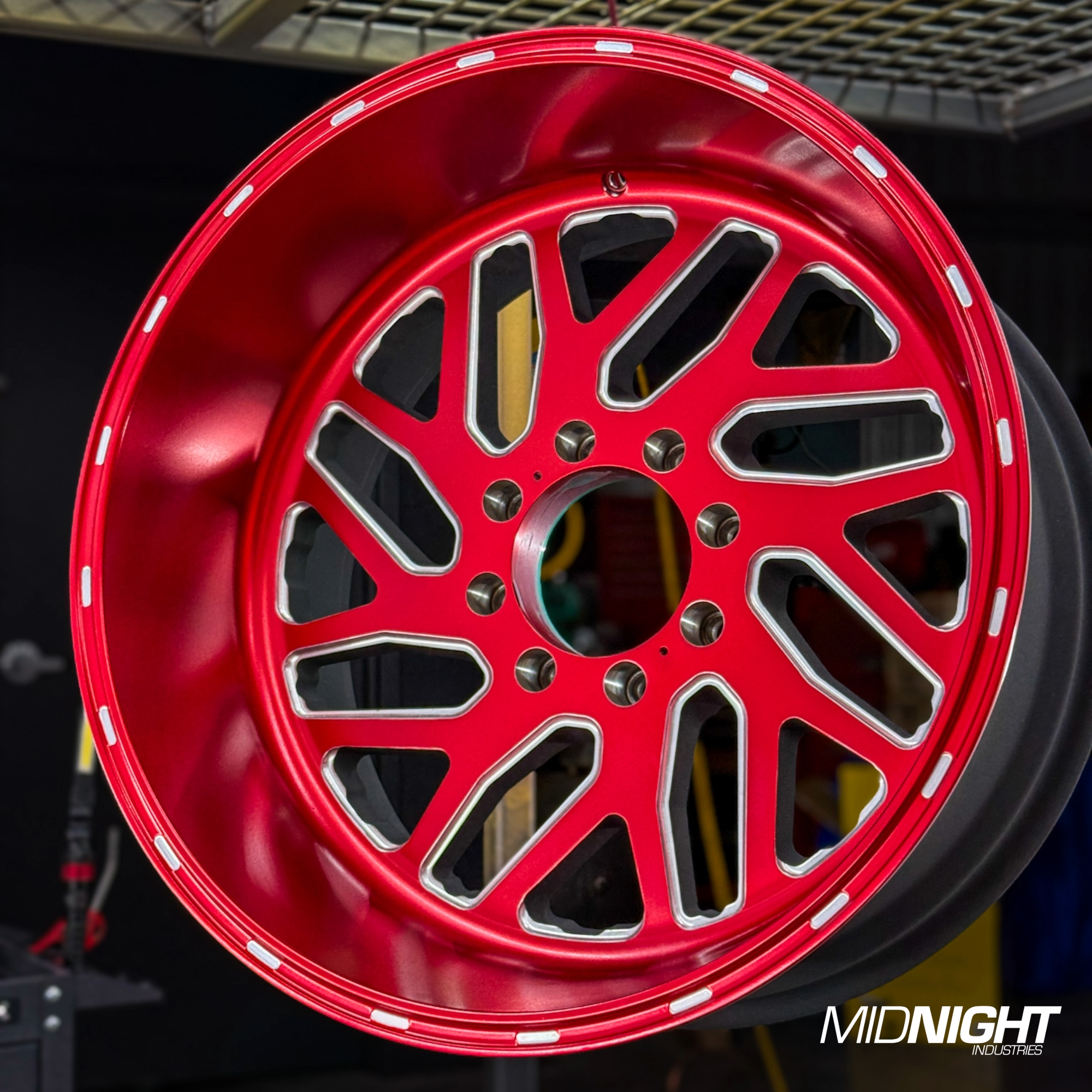

1. Automotive Industry: Powder coating is used for a wide variety of automotive components, including wheels, bumpers, trim, and undercarriage parts. The tough finish provides resistance to harsh environmental factors like road salts, moisture, and UV rays, keeping vehicles looking good and protecting the parts from corrosion.

2. Architecture and Construction: Architectural elements such as window frames, door hardware, and fencing often benefit from powder coating because of its ability to resist weathering, corrosion, and fading. Powder-coated finishes are commonly used on buildings, gates, handrails, and exterior furniture.

3. Consumer Appliances: Many household appliances, including refrigerators, washing machines, and dishwashers, have powder-coated finishes to enhance their appearance and protect them from the wear and tear of everyday use. Powder coating is resistant to chipping and scratching, making it perfect for these high-contact items.

4. Furniture: Both indoor and outdoor furniture can be powder-coated for a durable, attractive finish. Patio furniture, in particular, is often powder-coated to withstand exposure to the elements without fading or corroding.

5. Electrical Equipment: Powder coating is frequently used on electrical enclosures, machinery, and components because of its excellent insulating properties and ability to withstand high temperatures and harsh conditions.

6. Sports Equipment: Items such as bicycles, exercise equipment, and sporting goods often use powder coating for its ability to create a tough, durable finish that holds up to outdoor elements and heavy use.

Conclusion

Powder coating has revolutionized the way metal surfaces are finished, offering a superior alternative to traditional liquid paint. With its combination of durability, environmental benefits, and aesthetic versatility, powder coating is the preferred choice for many industries. Whether it's used for automotive parts, furniture, or appliances, powder coating provides a long-lasting, attractive finish that protects and enhances the underlying material. With its ability to resist corrosion, fading, and wear, it is clear that powder coating will continue to be a key technology in surface finishing for years to come.
